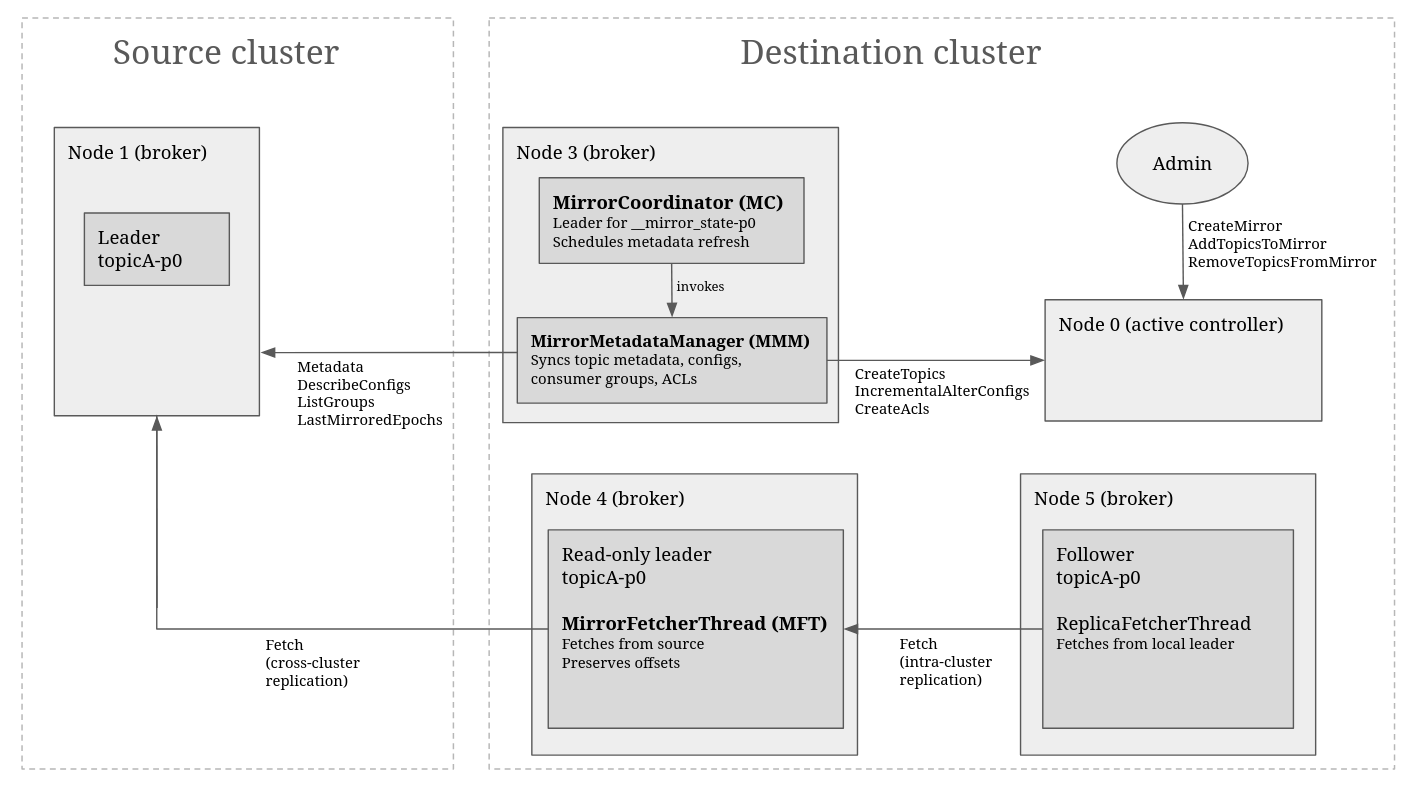

The architecture consists of three main components that work together to provide automatic metadata synchronization and data replication. The following diagram illustrates how these components are wired together. For the sake of clarity, some internal APIs are excluded.
The mirror name is stored as a topic-level internal configuration called mirror.name that has the same validation rules of topic names, and propagates through Kafka's metadata log as configuration change records. When topics are added to a mirror, the quorum controller generates configuration metadata records that are replicated to all brokers through the standard metadata update mechanism. Brokers monitor these configuration changes to detect when partitions they lead belong to a mirror, triggering the creation of mirror fetchers and enforcement of read-only semantics. This design ensures that mirror associations are visible, auditable, and manageable through standard Kafka tools while maintaining strict control over how mirroring relationships are established and modified.
...
- State Management: Mirror partition states and control records are stored in __mirror_state internal topic. The coordinator loads these metadata on startup and partition leadership changes.
- Partition Assignment: Mirror partitions are distributed evenly to coordinators across all brokers and allows for horizontal scaling. The number of coordinator partitions is configurable via mirror.state.topic.num.partitions.
- Leader Election: When a broker becomes the leader for a __mirror_state partition, it loads the mirror metadata for all mirrors assigned to that partition and begins coordinating those mirrors. On resignation, it clears its in-memory state to avoid stale metadata.
- Metadata Refresh Scheduling: The coordinator schedules periodic metadata refresh operations by invoking a metadata manager every 30 seconds by default. This ensures that configuration updates and group offset commits in the source cluster are continuously propagated to the destination cluster. The refresh interval is configurable via mirror.metadata.refresh.interval.ms.

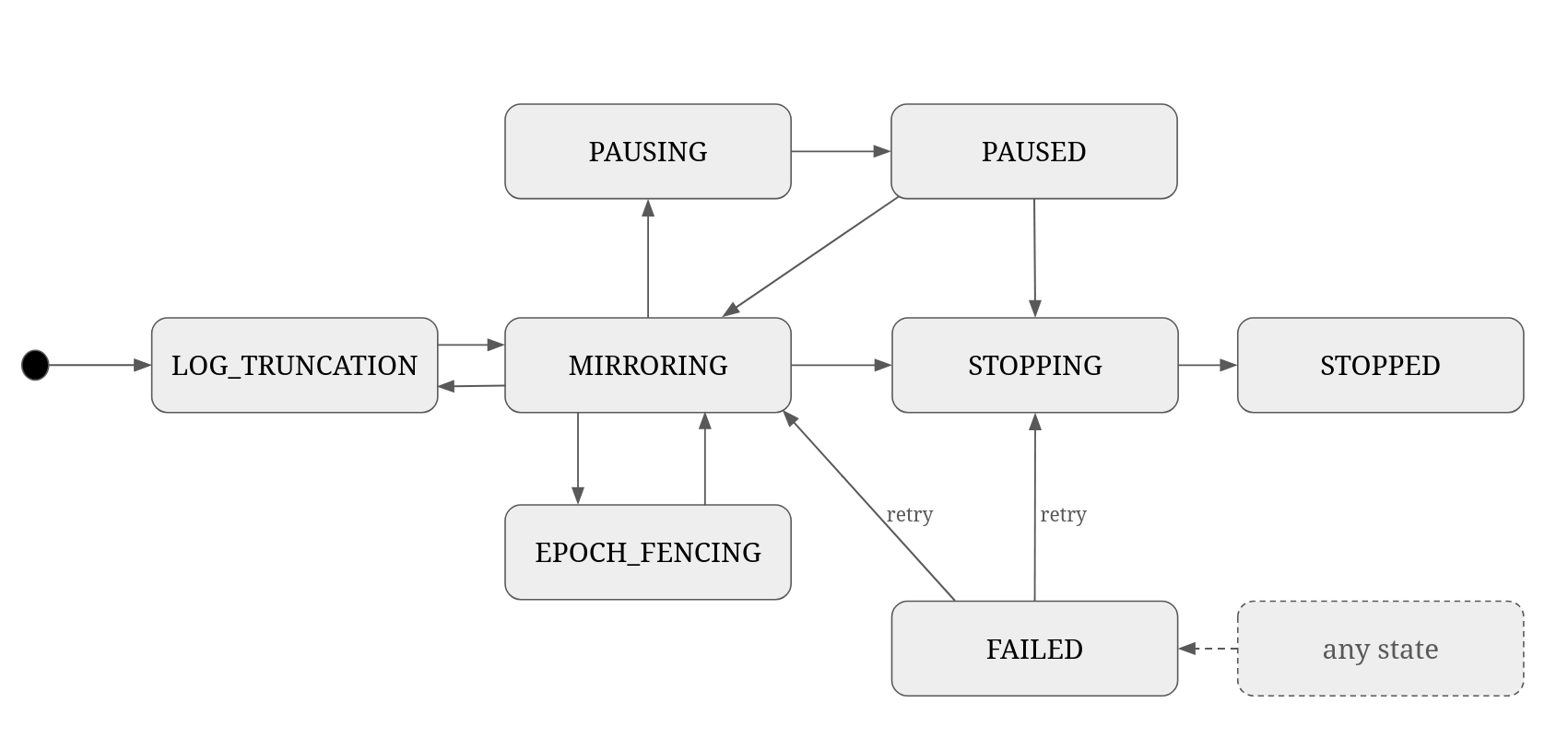

- State Transitions: The coordinator manages asynchronous state transitions for mirror partitions. Each partition is an independent replication unit with its own state. When the coordinator is the leader for a mirror partition, it writes the state updates directly to __mirror_state topic, otherwise it reads and writes the state via new internal RPCs, enabling distributed coordination across the cluster.
State descriptions:
...
